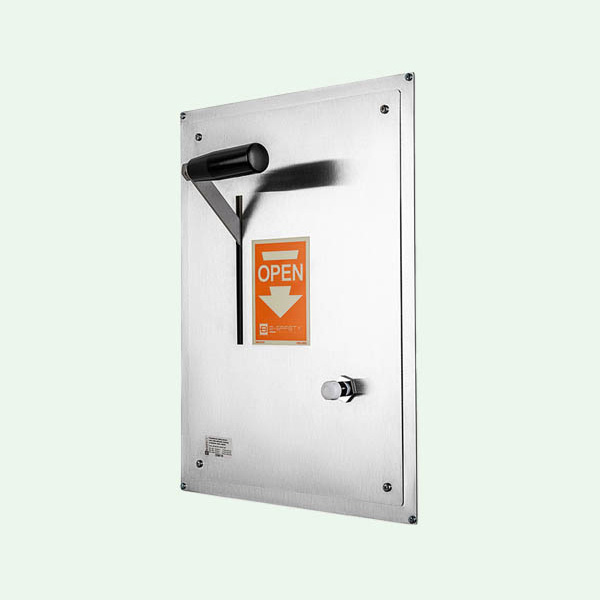

PremiumLine safety shower valve in stainless steel cabinet, with draining
B-SAFETY body safety showers are available in a modular system. The emergency shower arms and emergency shower valves can be purchased individually and adapted to the conditions on site. In this way, almost all conceivable installation requirements can be realized.
Mounting-Instructions:
For an installation in accordance with EN 15154-1:2006 it must be ensured, that the safety shower installation is self-draining between valve and shower head.
Technical Specifications
- Material: stainless steel, plastic
- Surface: polished
- Dimensions (H x W): 400 x 270 mm
- Operating pressure: 1 to 5 bar
- Flow rate: at least 60 l/min at 1 bar flow pressure
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463
Product description
The emergency shower valve in stainless steel housing is installed in the wall and offers an unobtrusive design. The stainless steel cover is removable for maintenance work. The robust ball valve has a drinking water approval and ensures a volume flow of at least 60 liters / minute at 1 bar flow pressure. It is operated by a stainless steel lever with a sturdy plastic handle. Installation at handle height is recommended for this safety shower valve. Drainage between the shower head and the valve can be ensured via the integrated drain valve.
Technical Description
- recessed stainless steel cabinet, cover for maintenance work removable, dimensions (H x W): 400 x 270 mm, installation dimensions (H x W x D): 350 x 220 x 60 mm
- ball valve ¾“ of stainless steel, with lever actuation, DIN-DVGW tested and certificated
- including 2x stainless steel union pipe fittings for simplified on-site installation, water inlet ¾” female
- flow rate at least 60 l/min at 1 bar flow pressure
- actuation via lever made of stainless steel, polished, length 160 mm, opening angle 90°, not self-closing
- robust handle of plastics, black, diameter 25 mm, length 90 mm
- integrated drain valve with automatic or manual drain, mounted on the outside of the lid
- information sign “OPEN” for confusion-free use in an emergency, orange, photoluminescent according to DIN 67510
- mounting height for lever according to the standards listed below: 0 to 1750 mm height above floor
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014, DIN EN 15154-1:2006 and DIN EN 15154-5:2019
